Description

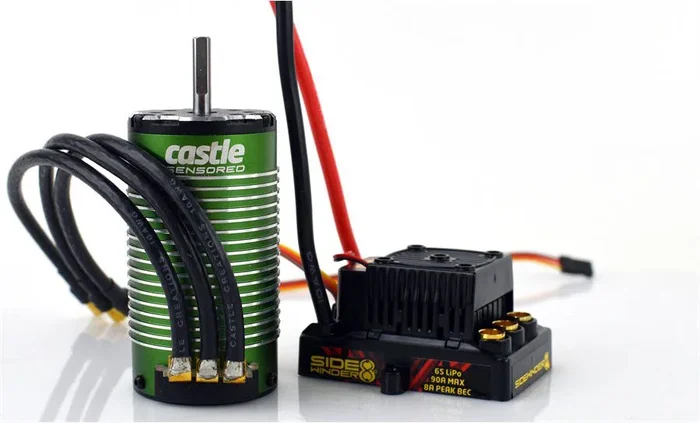

Experience unbeatable power and control with Castle Creations’ Sidewinder 1/8 Brushless ESC Combo! This waterproof combo is built for 1/8 scale buggies, truggies, and on-road vehicles, as well as 1/10 scale monster trucks up to 11lbs. It’s also a perfect upgrade for 4WD short course trucks on 3S or 4S, making it a versatile and affordable option for any platform. With the ability to handle 2S-6S LiPo and an 8amp peak BEC, this is the ultimate choice for passionate RC enthusiasts looking for an exhilarating experience. Don’t miss out on the chance to upgrade your 1/8th scale vehicle and feel the smooth throttle control for yourself!
Sidewinder 1/8th Features:
- 2S-6S LiPo with vehicles up 11.lbs with battery, ready-to-run
- Smooth Sensorless and sensored motor operation
1515-2200 V2 MOTOR Features:
- Redesigned stator and rotor assemblies to improve magnetic flux
- Reduced magnetic cogging, producing less residual drag brake
- Increased efficiency, resulting in lower temperatures and longer run times
- Smoother start-up, reducing cogging or stuttering when starting from a stop
- Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly
- High-Strength Kevlar wrap and 180C grade neodymium sintered magnets
- Oversized NMB bearings and high-temperature, high-purity copper windings
- High performance 0.2mm steel lamination stacked stator
- Oversized, low-resistance, gold-plated solder tabs
- Sensor board with high quality temperature stabilized sensors
- T6 aluminum CNC-Machined front/rear end bell
- Proudly designed and supported in Kansas, USA
Specifications:
- ESC:
- Input voltage range:2S-6S LiPo
- Length:2.45″ (62.2mm)
- Width:2.20″ (56mm)
- Height:1.33″ (34mm)
- Weight:3.52oz (100g)
- On/Off Switch:Yes
- Cooling Fan:Yes, factory equipped
- Connector:6.5mm female bullets for motor connection
- Wire Gauge:8AWG
- Motor:
- Application:Ideal for 1/8 scale buggies, truggies, on-road vehicles and 1/10 scale monster trucks up to 15lbs
- Input Voltage Range:2-6S LiPo
- Kv Rating:2200Kv
- Max. RPM:60.000
- Diameter:40mm (41.4mm with fins)
- Length:3.99″ (101.2mm)
- Shaft Size:20mm(Length), 5mm(Diameter)
- Weight(w/wires):Approx. 429g / 15.1oz; 380g without wires
- Mounting Hole Specifications:(Holes) 4mm & 3mm / (Spacing) 25mm
- Connectors:6.5mm male Castle Bullet Connectors, include 210mm length sensor wire.
NOTE:(CSE011-0130-00) Rotor Replacement is NOT compatible with the V2 motor. A new rotor replacement will be available in the future.
Includes:
- (1) Sidewinder 1/8 Brushless ESC
- (1) 1515-2200Kv V2 Brushless Sensored Motor
- (1) Castle Sensor Harness Adapter
- (1) 210 mm sensor wire (for sensored operation)
- (1) Coupon for free Castle Link USB
