Description

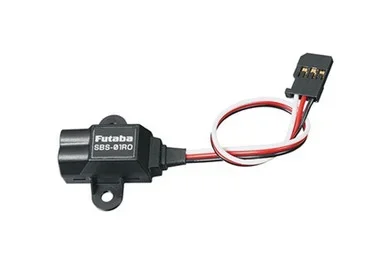

FEATURES: This sensor, when used in conjunction with a telemetry-enabled
radio system, is used to indicate the rotation speed of a
propeller, rotor, or other component. Nothing needs to be
attached to the component since the sensor uses available
light reflected off that component.
INCLUDES: One RPM sensor with attached cable
One plastic mounting bracket
Two pieces of double-sided foam tape
One instruction sheet
One warranty sheet
REQUIRES: Connection to S.BUS 2 system
SPECS: Weight: 4.9g (0.173oz)
Voltage: 3.7 to 7.4 VDC
Range: 360 to 300,000 RPM/Fin(s)
Sensor, length, overall: 6-1/4″ (160mm)
width: 28mm (1-1/8″)
height: 13mm (1/2″)
Mounting bracket, length: 34mm (1-3/8″)
width: 26mm (1″)
height: 12mm (1/2″)
Foam tape, length: 22mm (7/8″)
width: 22mm (7/8″)
thickness: 1.3mm (1/8″)
