Description

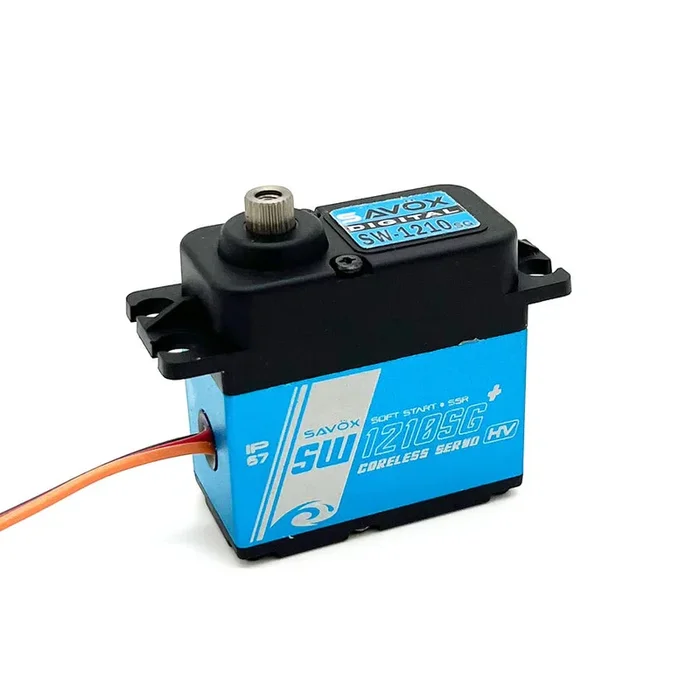

Savox SW1210SGP Waterproof High Voltage Coreless Digital Servo with Soft Start

The SW-1210SG is the premier waterproof digital servo in the Savox Lineup. This coreless servo provides great torque and is a great upgrade if your looking to drive your RC vehicle in any condition…rain, sleet, or snow.

“Plus” series servos feature Soft Start and Sanwa SSR compatibility.

FEATURES:

• Strong unique steel gears provide durability and assurance.
• Capable of HV operation.
• Waterproof construction for harsh elements.

SPECIFICATIONS:

• Torque @ 7.4V – 32.0kg/444.4oz-in
• Torque @ 8.4V – 37.0kg/513.8oz-in
• Speed @ 7.4V – 0.13 sec/60 deg
• Speed @ 8.4V – 0.12 sec/60 deg
• Dimensions L x W x H (mm): 40.6 x 20.7 x 42.0
• Weight: 71g
• Operating Temperature: 14° – 122°F (-10° – 50°C)
• Running Current (no load): 120mA @6.0V, 150mA @7.4V
• Stall Current (at locked): 6000mA @6.0 V, 7400mA @7.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V
• Wire Length: 150 ± 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless
