Description
Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models
The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there’s Avian Brushless motor that’s ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!
Key Benefits
Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.
Features
Lightweight design
Powerful and durable Rare-Earth Neodymium magnets
14-pole stator for smooth and precise propulsion

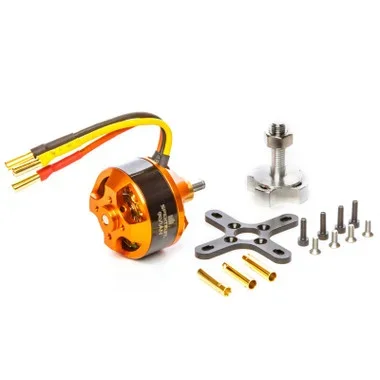

Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
Perfect match for the Spektrum Smart Avian 45 amp ESC
Perfect electric conversion upgrade for .25 size glow combustion power systems
Important Specs
Recommended Voltage Range – 11.1-14.8V / 3-4S LiPo
Recommended Propeller Range – 11×8.5 to 12×6 Electric Prop
Recommended Model Flying weight – 3D 1360g (3 lbs) – Sport 2040g (4.5 lbs)
Max Wattage – 375w
Max Current – Max Burst Amps (50A) Max Continuous Amps (45A)
Product Specifications
Adjustable TimingNo
ApplicationAirplane
Connector Type4mm Bullet
Input Voltage11.1-14.5V (3-4S LiPo)
Maximum Burst Current50A
Maximum Continuous Current45A
Motor TypeBrushless – Outrunner
Number of Poles14
Outer Diameter1.7″ (43 mm)
Product Length1.6″ (41 mm)
Product Weight4.4oz (125g)
RPM/Volt (Kv)1000
Shaft Diameter0.2″ (5 mm)
Shaft Length0.67″ (17 mm)
