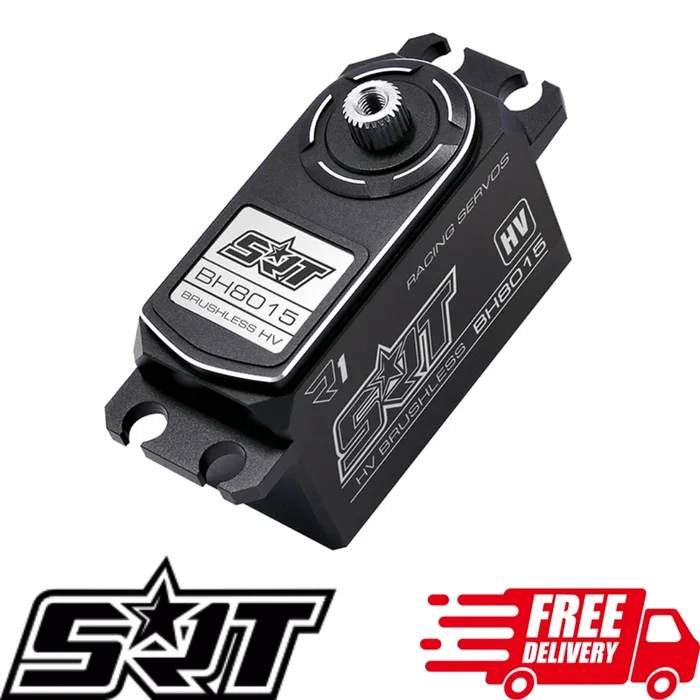

Name: SRT BH8015 1/10 HV Brushless Low Profile Servo
SKU: qhartowm15569
Availability: InStock

Description

Star Refined Technology, or better known as SRT have been providinghobbyistwith professional grade electronics at an affordable price for years. Their manufacturing process, R&D, and final products are top notch. A true performance first company that racers and bashers alike have come to love and trust within the radio control industry!

KEY FEATURES:

Unique Mechanic Design
Incredible efficiency and low power consumption
Standard dimension make it perfect for vehicles that can benefit from a high quality servo
CNC Machined aluminum case for exceptional cooling
HD 4096 Resolution
2 μsec Dead Band
Superior Holding Torque
1-Year Limited Warranty

Item no	6.0V	7.4V	8.4V	Gear	Motor	Case	Dimension (mm)	Weight (g)
Speed: sec/60°	Torque: kg-cm/oz-in	Speed: sec/60°	Torque: kg-cm/oz-in	Speed: sec/60°	Torque: kg-cm/oz-in
BH8015	0.065	10.0/138.8	0.055	13.0/180.5	0.050	15.0/208.3	Titanium & Alu	Brushless	all-metal	41.020.026.4	52.0

Application :1/10 Electric Car 1/10 Nitro Car1/10 Off-Road 1/10On-Road

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Alu
Control System: Pulse Width Control
Working frequency: 1520μs / 330hz
Operating voltage: dc6.0-8.4v
Operating temperature range: -10 to + 60 degree
Operating speed (6.0v): 0.065 sec/60 degrees at no load
Operating speed (7.4v): 0.055 sec/60 degrees at no load
Operating speed (8.4v): 0.050 sec/60 degrees at no load
Stall torque (6.0v): 10.0kg.cm (138.8 oz/in)
Stall torque (7.4v):13.0kg.cm (180.5 oz/in)
Stall torque (8.4v):15.0kg.cm (208.3 oz/in)
Potentiometer drive: direct drive
Dimensions: 41.0×20.0×26.4mm /1.61×0.79×1.04 in
Weight: 52.0g (1.83 oz)
Connector wire length: JR, 180mm
