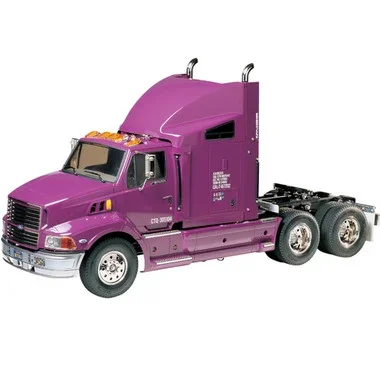

Tamiya 56309 1/14 Ford Aeromax On Road Tractor Truck Kit

Description

This is the electric powered, radio controlled, 1/14 scale
Tamiya Ford Aeromax Tractor Truck Kit.
Compatible with the Tamiya Tractor Truck Option Parts
for further customization.

Chassis:Ladder frame with aluminum channels and resin cross members
Body:Molded styrene, white in color
Cabin:Tilt forward operation just like full-size truck, removable
fenders to depict a low carrying load
Drive:Shaft driven from front mounted motor to double rear axles
Differentials:Bevel gear
Motor:RS540 brushed
Transmission:Three speed servo controlled constant mesh
Suspension:Die cast metal front axle and reinforced resin rear
axles float mounted on metal leaf springs and coil spring shocks
Wheels:Chrome plated plastic
Tires:Ten, treaded rubber construction

1/14 scale Tamiya Ford Aeromax kit, 540 motor, tires, wheels, body,
decal sheet, 3-speed transmission and instructions

Radio:4-channel with 4-channel receiver and analog or digital trim
function
**Important-if using the Multi Function Control, see COMMENTS**
Servos:Two standard size for steering and shifting
Electronic Speed Control:Tamiya TEU302BK (TAMM3178) recommended, do
not use the Tamiya TEU101BK or the TEU104BK
Battery:6-cell stick
Battery Charger:Timed or peak for 6-cell battery
Paint, building & track equipment

Length:24.17 (614mm)
Width:7.48″ (190mm)
Height:11.5″ (293mm)
Wheelbase:17.60″ (447mm)
Front Tread:6.14″ (156mm)
Rear Tread:5.43″ (138mm)
Weight:6.39lbs (2900g)
Gear Ratio:10.6:1
With the 3-speed gearbox, 10.6:1, 17.7:1 and 32.4:1 are possible
