Description

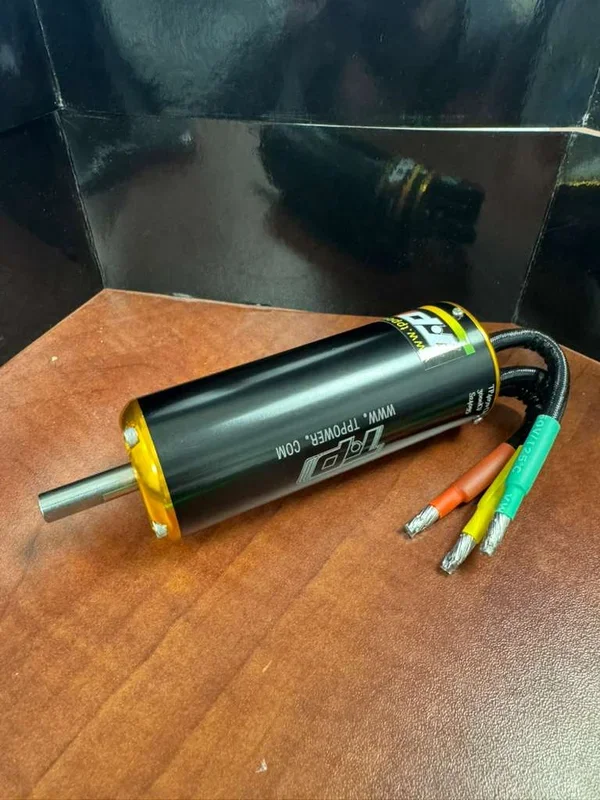

TP 4070-CM 2200kv BRUSHLESS MOTOR (UP TO 8s)
Parameters:
Can: Smooth
T: 4D
KV: 2200
Max Amps (A): 264
Max Volt (V): 34
Continuous Power (W): 5000
Max Power (W): 9000 for 10 seconds
Max RPM: 75 K for 10 seconds
Internal Resistance (Ohm): 0.0024
No-load Current (A): 9.8 at 7.5V
Shaft Diameter (mm): 5 or 8
Diameter X Length (mm): 40 X 107
Output Shaft Length (mm): 18 for 5mm-diameter shaft; 24mm for 8mm-diameter shaft
Bolt Pattern: 4 – M4 – 25mm & 4 – M3 – 25mm on the same front plate
Weight: 640 g
Pole: 4-pole
